OrigaFlex - OGFPWR

(Code: X13OGL005CIAL)

Contact us to get a quote
OrigaFlex - OGFPWR

POWER SUPPLY - OGFPWR


Description
Connectivity
Technical Specification
Brochures
achat potentiostat simple

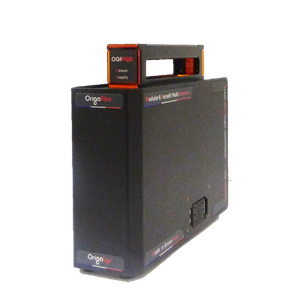

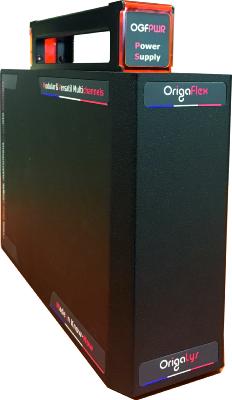

The OGFPWR is a power supply.  It deliver the current to :

- One potentiostat : OGF500 or OGF01A or OGF05A.

- And/or one impedance module : OGFEIS.

You can have an autonomous potentiostat galavanostat.

OGF500 Pack

OGF01A Pack

OGF05A Pack

5 years warranty !

One module for Three possibilities

The OrigaFlex range is a multi-channel system, modulare Mutli-potentiostats, compact and unique on the market. You can start your system with one potentiostat (single-channel) connected to a power supply with and controlled by USB. Three power are available :

  ±500 mA with OGF500

±1 A with OGF01A

  ±5 A with OGF05A

Power supply

Potentiostats - OGF500 or OGF01A or OGF05A

OGFPWR

OGF500

OGF01A

OGF05A

To run, your single-channel potentiostat must be connected to a power supply or a drive unit.

WITH or WITHOUT an impedance module

The OGFPWR allows you to supply one and only one potentiostat with an impedance module or not.

OGF500 Pack

OGF01A Pack

OGF05A Pack

With EIS

With EIS

With EIS

THREE possibilities for ONE software

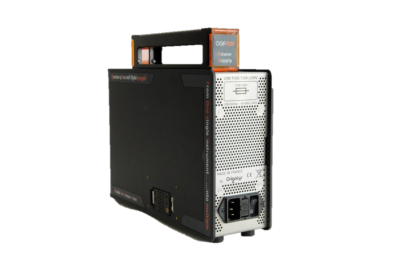

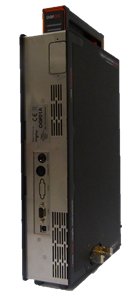

Das OGFPWR allows you to supply, one and only one potentiostat with an impedance module or not. The power module does not support the connection with the PC. This is made via USB from the rear panel of the potentiostat.

OrigaMaster 5 PC Software

The single-channel system is drived by USB connexion via OrigaMaster 5 software.

Main specifications

Power

Weight

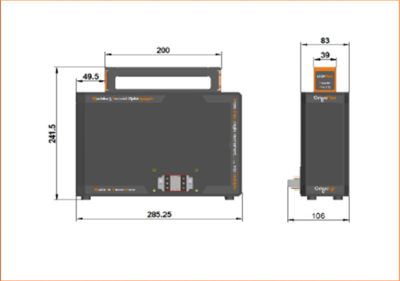

 Dimensions

Length

Width

Height

OrigaFlex - OGFPWR

100-240 Vac - 50-60 Hz - 1 KVA

 3.10 kg

in cm

28.5

8.3

24.15


Need more informations ? Contact us at  +33 9 54 17 56 03  or fill out our form
