OrigaFlex - OGF01A pack

(Code: PACKOGF01A)

Leaflet
4,490.00 EUR (EU only)
Add to cart

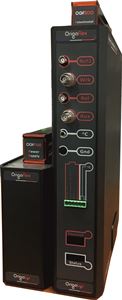

OrigaFlex - OGF01A pack

OGF01A PACK - POTENTIOSTAT AND GALVANOSTAT FOR ELECTROCHEMICAL MEASUREMENT


Description
Connectivity
Technical specification
Options
Brochures

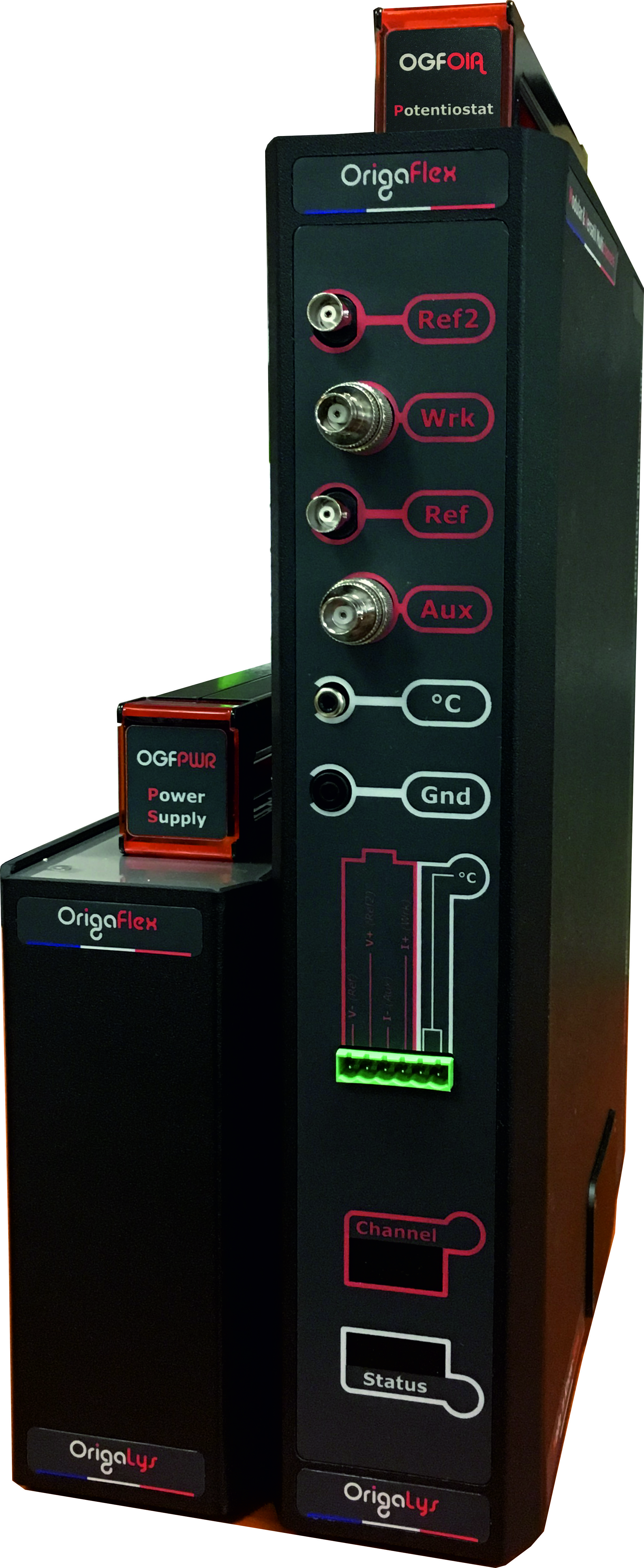

The OGF01A pack is a turnkey system, autonomus and independant with maximum current of 1 A. It is composed of the following elements :

- Power supply OrigaFlex OGFPWR

- Potentiostat Galvanostat OrigaFlex OGF01A

Current ranges: ±10 nA à ­±1 A

Current resolution: 0.003 % (±300 fA)

Applied potential: ±15 V

Compliance Voltage: ±20 V

- All the connection cables adapted to your experiments

- PC Software OrigaMaster 5

Main Functions

  • Potentiostat
  • Galvanostat
  • Impedance 10 µHz - 5 MHz (optional)
  • Temperature measurement in real time
  • Batteries holders (Swagelok, Coin Cells, etc)

OGFPWR

OGF01A

OrigaMaster 5

5  years warranty !

A keyturn system

The OrigaFlex pack is a Potentiostat and Galvanostat "Plug & Play" ready to operate. A quality single-channel, it is composed of a channel with a power of 5 A, a power supply, connexion cables for electrodes and the PC software OrigaMaster 5.

Main Technical Specifications:

Maximum current: ±1 A

Current range: ±10 nA à ±1 A

Current resolution: ±300 fA

Compliance voltage: ±20 V

Max applied potential: ±15 V

Supply

Potentiostat Galvanostat

Cables

OGFPWR

OGF01A

Fit your needs

To operate, your single-channel potentiostat must be connected to a power supply or a "pilot" channel

With or Without an Impedance module

OGFPWR supplies current to one potentiostat with or without impedance module.

OGF01A pack without EIS

OGF01A pack with EIS

The standard OGF05A pack doesn't include an impedance module, this is optional.

Driving software

The power supply module is not connected to the PC. The connexion is made from the channel via USB from the rear panel.

PC software OrigaMaster 5

The system is controlled by the software OrigaMaster 5.

Main specification

 Maximum current

Current ranges

 Current resolution

 Current accuracy

 Compliance voltage

 Applied potential

 Potential resolution

 Current accuracy

 Weight

 Dimensions

Length

width

Heigth

Power

OrigaFlex - OGF01A Pack

 ±1 A

 ±10 nA to ±1 A

 0.003 %. Best : 300 fA

 < 0.1 % Full scale range

 ±20 V

 ±15 V

 0.003 %. Best : 450 µV

 < 0.1 % Full scale range

 7.85 kg

in cm

28.5

16.6

45

88-264 Vac - 47-63 Hz - 30 VA

Compatible and optional modules

OGFEIS

Impedance module : 10 µHz - 5 MHz

OrigaTrod Kit

OrigaTrod : Rotating Disk Electrode

OrigaBox : Speed controler

de 100 à 10 000 Rot/min

OrigaMµ

Low current potentiostat

Current range :

±1 pA, ±10 pA, ±100 pA, ±1 nA and ±10 nA.

Best current resolution :

30 aA

Batteries holders

Coin cell holders

Temperature sensors included

Thicknessr : 3,2 mm maximum

Diameter : 20 mm maximum

Other complementary accessories

Electrodes

Tips

Cables

Glass Cells
