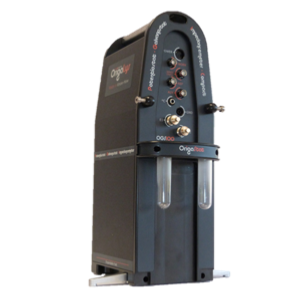

OrigaStat - OGS100

OrigaStat - OGS100

(Code: E11OGL021100CIAL)

OrigaStat OGS100
  • Potentiostat
  • Galvanostat
  • Impedancemeter
  • pH-meter
  • Temperature probe
  • Speed Controller for RDE
  • Control of external devices
  • 17V and 100mA
5500g

Contact us to get a quote

About OrigaStat - OGS100



This Potentiostat - Galvanostat - Impedancemeter, designed by OrigaLys Electrochem SAS is a complete solution with an attractive shape.

Each instrument from OrigaLys Electrochem SAS benefits from more than 20 years background and knowledge in Electrochemistry. It works with its user-friendly software: OrigaMaster.

The OGS100 performs pH and temperature measurements. The OGS100 can also be connected to a low current probe: OrigaMµ and a current booster: OrigaBooKst. The general specifications of the OGS100 are the same than the OGS080.


Compliance voltage: ±17.5 V

Maximum current: ±100 mA
Maximum applied potential: ±5 V


New impedance ability: 100 µHz to 1 KHz

From 100 µHz to 5 MHz with the OGFEIS

Technical specifications
