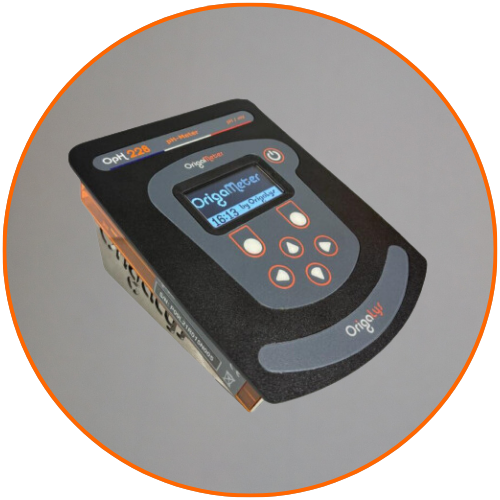

pH-meter for Industry - OpH228

pH-meter for Industry - OpH228

(Code: AR02100CIAL)

pH-meter for Industry - Easy Pack
OpH228

DESCRIPTION
USE
Included in the Pack
Technical specifications
Expert and profesional pH-meter for Industry

> Inherited from Radiometer PHM220 (same designer)
> Can be integrated into an existing pH meter fleet because its interface is compatible with those of old Radiometer pH meters.

> Easy connections
> Reliable and fast results
> Data transfer (Regressi, Excel and ExAo)
> Has an easy to use interface
> Durable and with a 5-year warranty (excluding consumables)

> Measurement history (quality control - customizable measurements)
> Menu BPL (Bonnes Pratiques de Laboratoire) : traçabilité des mesures

OpH228
Operation of this bench pH meter & OrigaLys laboratory

Calibration:
> The instructions are simple and in French on a large display. The pH meter calibration menu allows you to choose to calibrate on 1-3 points from two sets of buffers (IUPAC or 4-7-10). Another calibration mode exists: the free mode, it allows you to dip the electrode and adjust the value of the buffer with the arrows provided for this purpose, this calibration is performed on two buffers. If desired, you can use the calibration parameters of the last manipulation.

Data transfer:
> Lthese parameters of the latest calibrations are stored in the instrument and can be exported to a. txt file via USB transfer. The pH meter is compatible with almost all Ex.A.O. systems (Regressi included) thanks to its outputs (digital and analog). Measured data can be exported, only, in real time:
> USB to Excel
> By RS232 to acquisition cards (software Regressi for example)
> Par analogique vers des cartes d'acquisitions

Measurement Modes:
> Two measurement modes are available to facilitate the operator’s work: manual mode, which allows a continuous reading of the pH by displaying the stability indicator or automatic mode where the result freezes when the signal is stabilized (100% stability).

Connecting the electrodes:
> The electrode connections allow you to use the probes of your choice (all brands) with the appropriate cable: the single or combined electrode connected to a BNC plug and the reference electrode connected with a 4 mm banana plug (if necessary). The temperature probe is connected via a CINCH input. Without a probe, you are free to manually enter the temperature on the main display of the pH meter.
Composition of the Easy pack OpH228

This simple pack includes:
> The pH-meter
> A power supply EURO (AR00863)

Main specifications
OpH228
pH Measure range

mV Measure range

°C Measure range

pH Resolution

mV Resolution

°C Resolution

Calibration

Calibration acceptance criteria
(modifiable and customizable)



Measure
- 9 to 23 pH

 ± 2000 mV

 - 10°C to 110°C

 ± 0,01 pH

 ± 0,1 mV

 ± 0,1 °C

 1 to 4 buffers (automatic / free by adjustment / manual)

Default settings:
Slope: 95 to 102%
Zero-pH: 5.80 to 7.50 pH
Non-blocking criteria generating a warning

Continue, automatique ou à intervalles
0g
