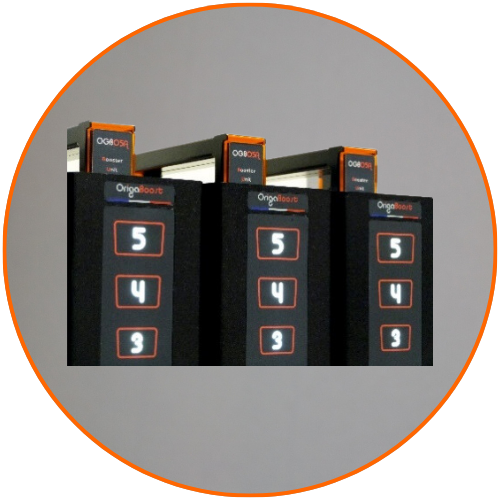

CURRENT BOOSTER - ORIGABOOST
05A - 10A - 15A - 20ADESCRIPTION How it works Technical specifications Powerful and modular, the OrigaBoost increases the maximum current of the following instruments: OrigaStat (OGS100 & OGS200)
> The maximum current can be easily increased by adding 5A modules.
> The range available is: 5A, 10A, 15A and 20A.The principle is to connect 1 Drive Unit and 5A Power Units to a compatible OrigaLys potentiostat.
The Drive Unit replaces the front panel of the OrigaLys potentiostat to which it is connected. The electrodes are connected to the Drive Unit.
Electrodes
Max applied potential
Output voltage
Maximum current
Resolution
Accuracy
Mode
Bandwidth (Potentiostatic / Galvanostatic)
PC software
Compatibility
2, 3 and 4
±15V
±20V
±5A / ±10A / ±15A / ±20A
0.003%
< 0.1% FSR (full scale)
Potentiostat / galvanostat
50 KHz
OrigaMaster
OGS100 / OGS200 / OGSEIS
|
