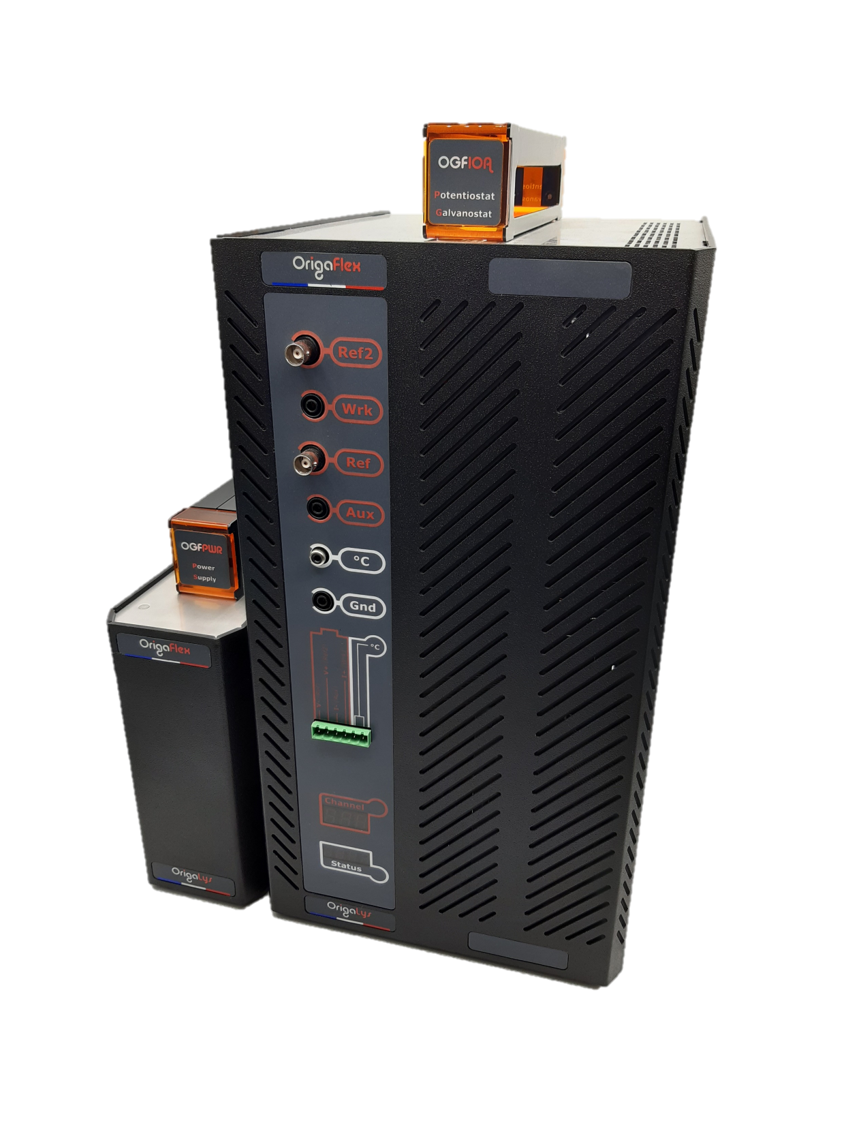

OrigaFlex - OGF10A pack

OrigaFlex - OGF10A pack

(Code: PACKOGF10A)

Single-potentiostat system

  • Potentiostat and Galvanostat (OGF10A)
  • Its Power Supply (OGFPWR)
  • Connection cables
  • PC software OrigaMaster 5
  • Maximum current: ±10 A
0g

OGF10A PACK - POTENTIOSTAT AND GALVANOSTAT FOR ELECTROCHEMICAL MEASUREMENT


Description
Connectivity
Technical specification
Options
Brochures

The OGF10A pack is a turnkey system, autonomus and independant with maximum current of 10 A. It is composed of the following elements :

- Power supply OrigaFlex OGFPWR

- Potentiostat Galvanostat OrigaFlex OGF10A

Current ranges: ±100 µA à ­±10 A

Current resolution: 0.003 % (±3 nA)

Applied potential: ±15 V

Compliance Voltage: ±20 V

- All the connection cables adapted to your experiments

- PC Software OrigaMaster 5

Main Functions

  • Potentiostat
  • Galvanostat
  • Impedance 10 µHz - 5 MHz (optional)
  • Temperature measurement in real time
  • Batteries holders (Swagelok, Coin Cell, etc)

OGFPWR

OGF10A

OrigaMaster 5

5 years warranty !

A keyturn system

The OrigaFlex pack is a Potentiostat and Galvanostat "Plug & Play" ready to operate. A quality single-channel, it is composed of a channel with a power of 10 A, a power supply, connexion cables for electrodes and the PC software OrigaMaster 5.

Main Technical Specifications:

Maximum current: ±10 A

Current range: ±100 µA à ±10 A

Current resolution: ±3 nA

Compliance voltage: ±20 V

Max applied potential: ±15 V

Supply

Potentiostat Galvanostat

Cables

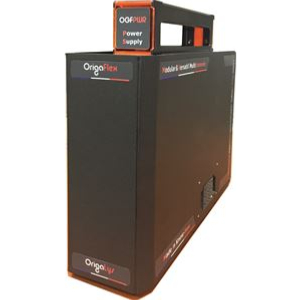

OGFPWR

OGF10A

Fit your needs

To operate, your single-channel potentiostat must be connected to a power supply or a "pilot" channel

With or Without an Impedance module

OGFPWR supplies current to one potentiostat with or without impedance module.

OGF10A Pack with EIS

OGF10A Pack with EIS

The standard OGF10A pack doesn't include an impedance module, this is optional.

Driving Software

The power supply module is not connected to the PC. The connexion is made from the channel via USB from the rear panel.

PC Software OrigaMaster 5

The system is controlled by the software OrigaMaster 5.

Main spécifications

 Maximum current

 Current ranges

 Current resolution

 Current accuracy

Compliance voltage

 Applied potential

 Potential resolution

Current accuracy

Weight

 Dimensions

Length

width

Heigth

Power

OrigaFlex - Pack OGF10A

 ±10 A

 ±100 µA to ±10 A

 0.003 %. Best : 3 nA

 < 0.1 % Full Scale Range

 ±20 V

 ±15 V

 0.003 %

 < 0.1 % Full scale Range

 16 kg

in cm

28.5

41

45

115-230 Vac - 47-63 Hz - 150 VA

Compatible and optional modules

OGFEIS

Impedance module : 10 µHz - 5 MHz

OrigaTrod Kit

OrigaTrod : Rotating disk electrode

OrigaBox : Speed controler

de 100 à 10 000 RPM

OrigaMµ

Low current ^potentiostat

Current ranges :

±1 pA, ±10 pA, ±100 pA, ±1 nA and ±10 nA.

Best current resolution :

30 aA

Batterie holder

Coin cells holder

Temperature sensors included

Thickness : 3,2 mm maximum

Diameter : 20 mm maximum

Other Complementary accessories

Electrodes

Tips

Cables

Glass cell
